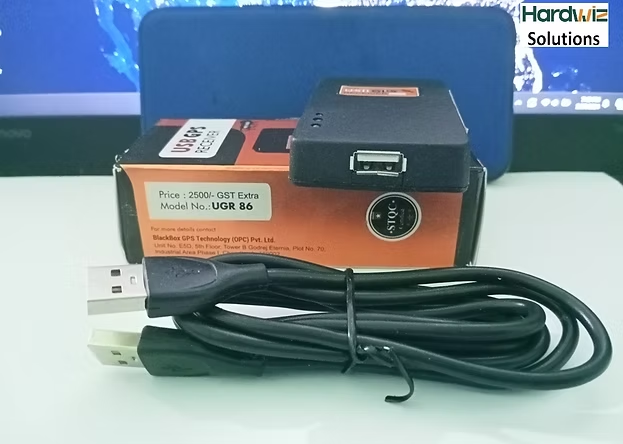

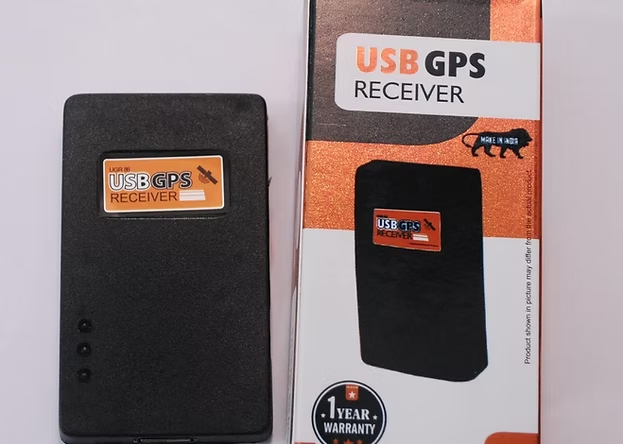

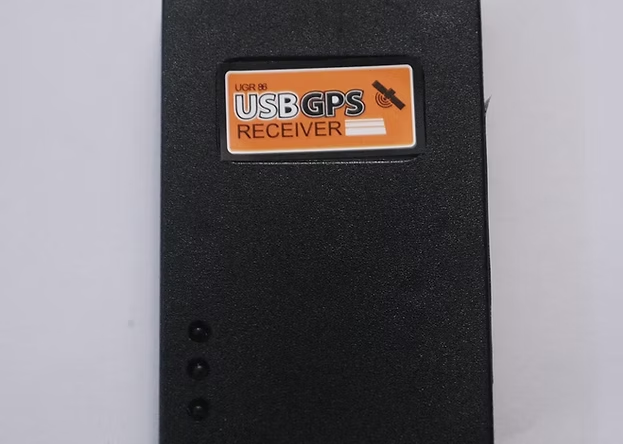

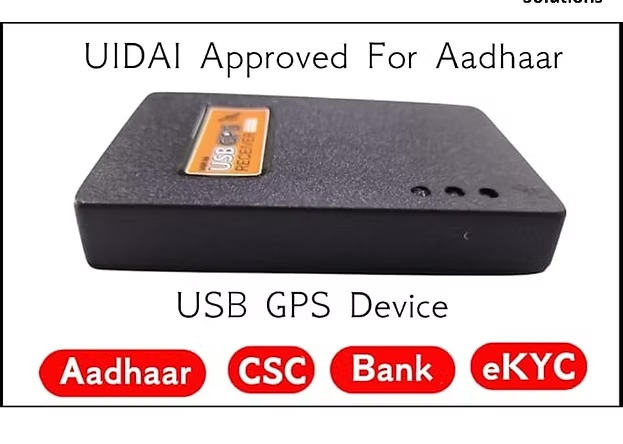

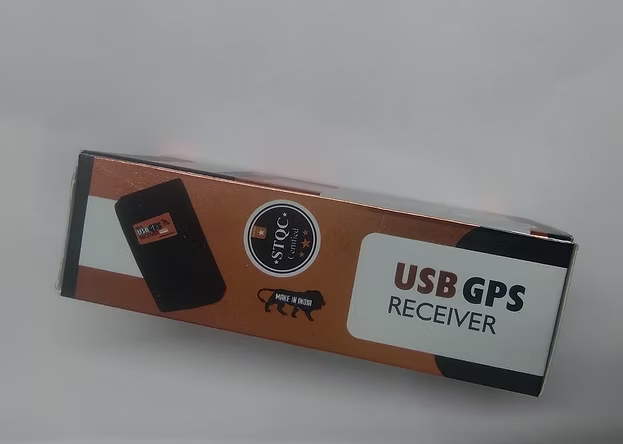

UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking
UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking - Image 2
UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking - Image 3
UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking - Image 4
UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking - Image 5
UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking - Image 6

UGR 86 USB GPS Receiver for Aadhaar & J&K CSP Banking

(1 customer review)
Original price was: ₹2,500.00.Current price is: ₹1,850.00.
Tax included. Inclusive of all taxes. FREE Delivery for prepaid orders.
Cash on Delivery (COD) Terms:
• Prepaid order shipping: Free
• Cash on Delivery (COD) charge: 4% of value (advance) [Partial COD amount required]

The UGR86 USB GPS Receiver plays a vital role in enhancing the Aadhaar enrollment & JK Khidmat Bank process by enabling real-time location tracking during biometric data capture STQC and UIDAI.

👉 Please select your required options below first, then click your preferred purchase button.
Pay a deposit of 4% per item
Pay on Delivery: ₹1,776.00
🔄 7 Days Return Policy 🛡️ 1 Year Warranty (For claim contact us) 🛠️ Installation & Tech Support
Category:
Tags: , , ,
Brands:

Description

The UGR86 USB GPS Receiver plays a vital role in enhancing the Aadhaar enrollment process by enabling real-time location tracking during biometric data capture, including iris and fingerprint scans. It ensures each Aadhaar registration is geotagged for compliance and audit purposes. The device aligns with STQC and UIDAI mandates by integrating GPS into the ECMP Aadhaar enrollment client.

Beyond Aadhaar, the UGR86 is also widely used at J&K CSP banking points across India. These mini bank setups—require GPS-enabled systems to comply with regulatory norms, track service locations, and authenticate digital transactions securely.

Mandatory GPS Enforcement via Sync Procedure

To enforce GPS use, the Sync procedure has been made mandatory with the ECMP client. The UGR86 captures accurate latitude and longitude data, enabling geo-fencing, real-time monitoring, and device control—all of which are vital for both Aadhaar projects and CSP banking operations. This helps prevent misuse and strengthens data integrity.

UIDAI GPS Compliance – Mandatory Since 2017

As per UIDAI directives, all ECMP Aadhaar enrollment systems must have GPS integrated. The deadline of March 15, 2017, marked the mandatory implementation of this regulation. Devices lacking GPS capability are considered non-compliant. The UGR86 ensures full compliance, making it an indispensable tool for Enrollment Agencies (EAs) and Banking CSPs alike.
Key Features of UGR86

  • ✅ USB Plug & Play – Easy to install and use with any standard USB port.
  • ✅ Real-time Geo-coordinates – Captures accurate latitude/longitude instantly.
  • ✅ Compact & Durable – Rugged ABS casing built for field use.
  • ✅ Wide Compatibility – Supports various systems and software platforms.
  • ✅ Supports CSP Points – Perfect for CSP operations like Atiyati J&K Bank.

UGR86 GPS Pricing and Downloads

Hardwiz Solutions offers competitive pricing on the UGR86, along with official driver and software downloads for smooth integration with Windows 10/11 systems.

  • 🔹 UGR86 GPS Price – Contact us for the best deal tailored for Aadhaar and CSP use.
  • 🔹 Driver Download for Windows 10/11 – Get full functionality across modern operating systems.

  • 🔹 Software Download – Unlock advanced tracking and configuration features.

Applications in Aadhaar & CSP Banking

  • 🔹 Aadhaar Enrollment Centers (ECMP Client + GPS)
  • 🔹 J&K Bank CSP/Mini Bank Points

Contact Hardwiz Solutions 📞 +91 93102 23033

For GPS purchases, technical support, or bulk orders, get in touch with our expert team today.

Conclusion

The UGR86 USB GPS Receiver by Hardwiz Solutions is more than just a device—it’s a compliance-ready, field-proven GPS solution for both Aadhaar enrollment and CSP banking services. From ensuring UIDAI standards to securing CSP operations like J&K Bank Atiyati banking points, the UGR86 offers unmatched reliability, affordability, and ease of use. Secure your enrollment and banking point today—contact Hardwiz Solutions for the UGR86 GPS.

Driver

Installing the UGR86 GPS driver (usually a CP210x USB-to-UART bridge controller) for Aadhaar or UCL software is pretty straightforward.

Click here: Here are the simple steps to get it running:
1. Download the Driver

  • Head to an official or trusted provider (like the Download Page or your vendor’s portal) and download the UGR86 driver ZIP file.

  • Extract or unzip the downloaded folder.

2. Install the Driver

  • Right-click the setup file (setup.exe or the CP210x installer) and select Run as Administrator.

  • Follow the on-screen prompts to finish the installation.

  • Restart your computer once it’s done.

3. Connect and Verify

  • Plug your UGR86 GPS device into a USB port on your PC.

  • Open Device Manager on Windows, look for Ports (COM & LPT), and confirm that the device is listed (usually as a Silicon Labs CP210x USB to UART Bridge).

4. Configure with GPS Analyser & Aadhaar Portal

  • Open a testing tool like the Hardwiz GPSInfo tool Analyser.

  • Set the Baud Rate to 9600 (this is critical for Aadhaar/UCL software).

  • Connect the receiver, wait a minute or two for a green signal lock and coordinates (latitude/longitude) to show up, then close the port and launch your Aadhaar/UCL software.

If you’d like, I can help you with:
  • Troubleshooting a weak GPS signal or COM port errors
  • Configuring the exact baud rate settings inside the Aadhaar client

Let me know what operating system (Windows 10/11) you are using!

Technical Specification

The UGR86 USB GPS Receiver is a high-sensitivity GNSS device manufactured primarily for UIDAI Aadhaar Enrolment Centers, Bank CSPs, and identity-geolocating solutions. It is strictly built to comply with STQC and government technical standards.

The core technical specifications for the hardware include:
📡 Core GPS & GNSS Capabilities
  • GPS Chipset: High-sensitivity MediaTek GNSS Receiver.
  • Constellation Support: Multi-GNSS tracking covering GPS, GLONASS, and BeiDou (or Galileo/NavIC depending on sub-variants like the UGR89 series).
  • Channels: 22 Tracking / 66 Acquisition channels.
  • Positional Accuracy: Up to <2.5 meters CEP (autonomous).
  • Sensitivity: -148dBm (Acquisition) / High-sensitivity tracking.
  • Timing Accuracy: <15 ns with Pulse width 100ms.

💻 Connectivity & Data Transmission
  • Hardware Interface: USB 2.0 (Integrated Plug-and-Play setup).
  • Data Output Format: NMEA 0183 standard protocol.
  • Default Baud Rate: 9600 bps (Required configuration for Aadhaar client software).
  • Supported OS: Windows (XP, 7, 8, 10, 11), Linux, and Android via OTG.

⚡ Power & Environmental Limits
  • Power Supply: 5V DC (USB Powered — draws energy directly from the computer).
  • Power Consumption: Low energy-efficient footprint.
  • Operating Temperature: Ruggedized for extreme field operations from -40°C to +85°C.

🏗️ Physical Attributes
  • Casing Material: Rugged ABS Body.
  • Design Profile: Compact, lightweight standalone unit intended for desktop or dashboard mounting.
  • Visual Status: Built-in LED hardware indicators for power and GPS satellite signal locking.

If you are experiencing issues setting it up, let me know if you need help with checking NMEA data strings or resolving Windows Device Manager errors.
AI responses may include mistakes. For financial advice, consult a professional.

    • People also search for:
      ✅ UGR 86 GPS Receiver The UGR 86 is a high-precision USB GPS device used for Aadhaar enrollment and CSP banking with real-time location tracking and UIDAI compliance.
      ✅ UGR 86 USB GPS Driver Download the latest UGR 86 USB GPS driver for Windows 10/11 to ensure smooth functionality and seamless integration with ECMP and CSP systems.
      ✅ UGR 86 GPS Price in India Available at Hardwiz Solutions for just ₹1650/-, the UGR 86 offers unbeatable value for Aadhaar and CSP operations across India.
      ✅ UGR 86 GPS Driver Get official UGR 86 GPS drivers for stable, plug-and-play performance in government-approved biometric and banking setups.
      ✅ UGR 86 GPS Price on Flipkart Compared to Flipkart’s pricing, Hardwiz Solutions gives you the best price of ₹1650/- with authentic support and fast delivery.
      ✅ UGR 86 GPS Price on Amazon While Amazon listings may vary, Hardwiz Solutions offers a better deal at ₹1650/-, lower than most Amazon sellers.
      ✅ UGR86 GPS for J&K Bank Price CSPs in Jammu & Kashmir can get the UGR86 GPS for just ₹1650/-, designed specifically for J&K Bank service points.Whether it’s for secure Aadhaar data capture or for CSP location authentication, the UGR86 stands out as a trusted GPS solution.




Faq's

Hardware & OS Compatibility

  • What is the UGR86 GPS Receiver used for?
    The UGR86 is a high-sensitivity USB GNSS device primarily mandated by the UIDAI for Aadhaar Enrolment Centres, UCL software, and Bank CSPs. It provides secure geotagging and geo-fencing to verify the physical location of biometric data capture.
  • Which operating systems support the UGR86 driver?
    The device natively supports Windows 10 and Windows 11 (both 32-bit and 64-bit platforms). Legacy setups can also operate on Windows 7, Windows 8, Linux distributions, and Android systems via an OTG connection.
  • Can I use the UGR86 driver for a UGR89 GPS device?
    No. The newer UGR89 models feature a distinct multi-constellation chipset (integrating NavIC/IRNSS) that requires a completely different, dedicated driver package.

⚙️ Software Configuration & Installation
  • Where can I download the official UGR86 drivers?
    Drivers should be obtained directly from your authorized equipment vendor portals, such as the Hardwiz Solutions.
  • What is the correct Baud Rate for the Aadhaar/UCL client?
    The mandatory baud rate for the UGR86 to interact successfully with the Aadhaar client or testing software is 9600 bps. Setting it to any other frequency will break the data stream.
  • How do I verify if Windows has recognized the UGR86 device?
    Right-click the Start menu, open Device Manager, and expand Ports (COM & LPT). The device should appear as a Silicon Labs CP210x USB to UART Bridge along with its designated COM port number (e.g., COM3).

📡 Troubleshooting & Signal Activation
  • Why is my GPS Receiver not showing latitude and longitude coordinates?
    GPS chipsets need a clear line of sight to overhead satellites. If you are operating inside a heavy concrete building, place the UGR86 device directly near a window or move outdoors until its status LED begins blinking, confirming a satellite lock.
  • How do I fix a “GPS Port Busy” or “GPS Not Found” error?
    This error means another application is locking the assigned COM port. Unplug the USB cable, restart your PC, plug the device into a different USB port, and re-verify the active COM mapping inside your testing tool (like Black Box GPS Analyser).

🛍️ Commercial: Price, Warranty & Availability
  • What is the average market price of the UGR86 GPS Receiver?
    Prices generally range from ₹1,850 to ₹2,499 based on the platform. A new unit on Hardwiz Solutions is priced at ₹1,850, Amazon India lists it around ₹2,399, and the Hardwiz Online Store lists it for ₹2,499.
  • What kind of warranty comes with the UGR86 receiver?
    Authorized retailers such as Radium Box provide a standard 1-Year Warranty covering all manufacturing and hardware defects from the date of your purchase invoice.
  • Is the UGR86 device currently in stock?
    Yes. It is readily available for immediate online dispatch across major Indian commercial logistics networks.



Additional information

Weight 0.3 kg
Dimensions 14 × 12 × 8 cm
Use in

AADHAAR Center, Geo-tracking Project, J&K Khidmat Bank
